Datacard printer DSE DUPLEX

Ref. ELP2-DSE-DUPLEX

ART61486

Other variations:

Ask for your quote for a

quantity of: lot of 1 piece(s)

Add to quote request

Answer in less than an hour

Delivery time : 0 working day(s)

or contact us on 01 41 41 02 41

Convert your basket into a quote at any time
Secure payment
Delivery in 24 to 48 hours / items in stock
Decreasing prices according to order volumes

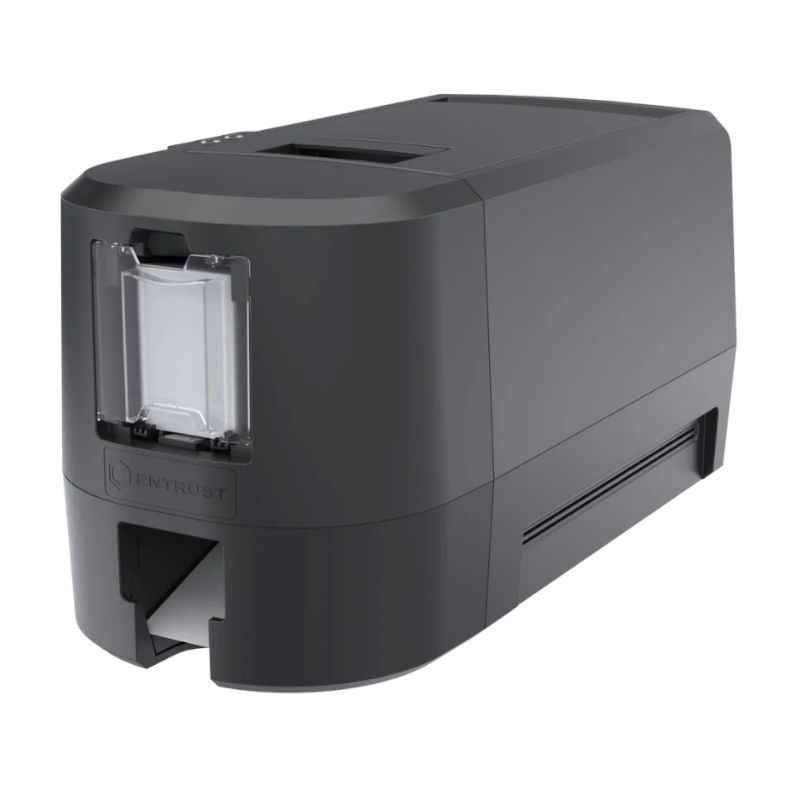

SIGMA DSE Duplex printer

Printing technology: double-sided dye-sublimation printer

Resolution: 300 dpi with 600 dpi and 1200 dpi options.

Printing speed:

-Single-sided color ribbon: up to 185 cards per hour (cph).

Double-sided color ribbon: up to 145 cph.

-Single-sided monochrome: up to 750 cph.

-Double-sided monochrome: up to 421 cph.

Card capacity : 100-card input tray and 25-card output tray.

Card dimensions accepted: CR-80 format with thickness from 0.609 mm to 1.1016 mm.

Operating environment: Temperature 15°C - 35°C; humidity 20 - 80% non-condensing.

Dimensions and weight: 44.5 cm × 22.6 cm × 22.9 cm and 5.49 kg.

Connectivity: USB and Ethernet.

Compatible operating systems: Windows 11, Windows 10 (32- and 64-bit), Windows Server 2022, Windows Server 2019, Linux Ubuntu 20.04 LTS and Linux Kylin 10.

Optional modules and consumables:

-ISO 7811 magnetic stripe encoding (high and low coercivity) and JIS Type II single stripe.

-Contact smart card encoding (ISO 7816 T=0 / T=1), contactless smart card (ISO 14443 A/B, ISO 15693, MIFARE, DESFire EV1/EV2, HID Prox, iClass, Seos, Felica).

User-friendly features: Intuitive dashboard accessible from a mobile device to monitor printer status, order supplies, update firmware or contact support. A patented function protects the printhead when changing ribbons, prolonging its life.

Mobile connectivity: Printing possible from a smartphone or tablet (iOS, Android, Windows).

Warranty: 24 months

Key features Datacard DSE DUPLEX printer

Brand	DATACARD
Single or double sided	Double-sided
Resolution (in dpi)	300
Printing technology	Sublimation
Colour or monochrome	Colour
Colour print speed in YMCKO (no. sides / H)	190
Monochrome printing speed (no. sides / H)	700
Feeder capacity (no. of 0.76 mm thick cards)	125
Output tray (no. of 0.76 mm thick cards)	125

Number of pieces per batch: 1

Documents :

Full data sheet and printable version
